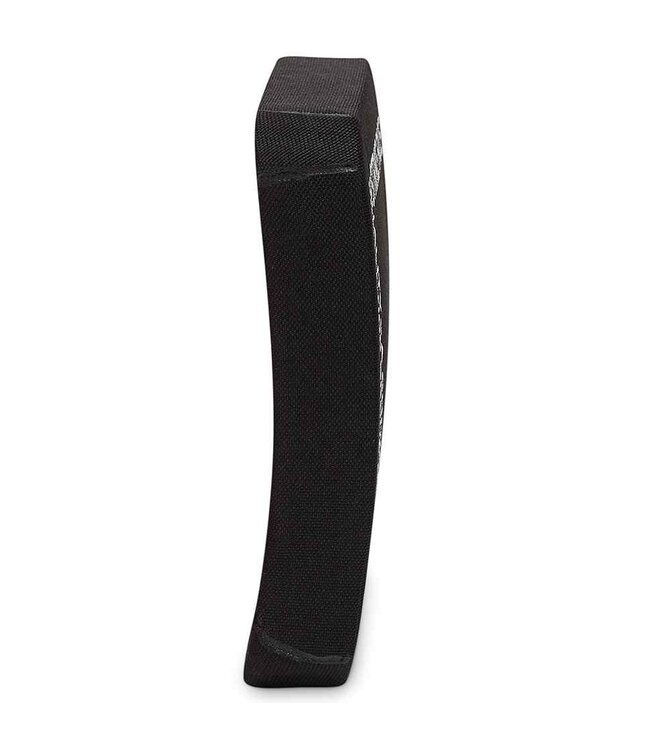

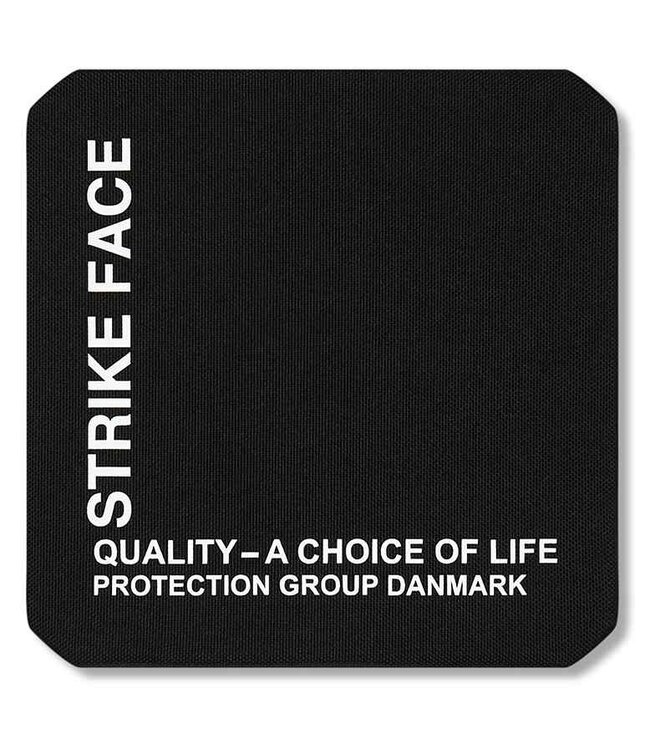

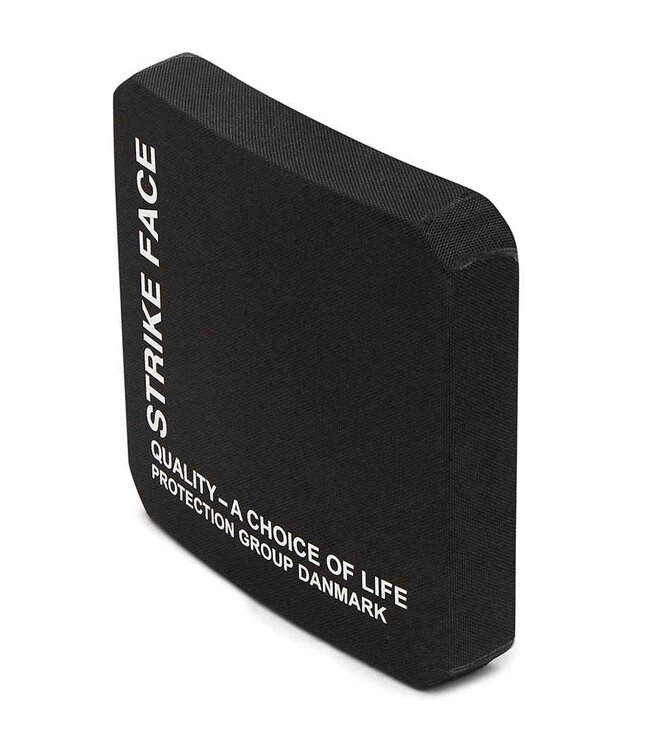

A ceramic square cut side plate in NIJ level 4 for PGD U-line level 4 hard armor. They are made in a single curve for great comfort in sizes 6×6″ and 6×8″.
The plate is made of Monolithic SIC, which means that there is a large piece of ceramic at the front of the ballistic hard armor plate, which is our lightest ceramic solution.
Our NIJ level 4 side plates stop the following threats:
|
Standard |
Projectile |
Velocity |
|---|---|---|
|
NIJ 0101.06 |
.30 Cal. (.30-06) 166 gr. (10.8g) AP (U.S Military M2AP) |
878 m/s +- 9,1 |
|
Special threat |
7.62x54R, 150 gr. API B32 |
854 m/s +- 9,1 |
|
Special threat |
5.56x45mm, 62 gr. FMJ (SS109) |
950 m/s +- 9,1 |
|
Special threat |
7.62mm NATO, 147 gr. (9.6g) FMJ (U.S. Military M80) |
847 m/s +- 9,1 |
|
Special threat |
Russian 7.62x39mm 123 gr. MSC (M43) |
725 m/s +- 9,1 |
At the same time, the plate stops up to 7.62×63 AP (30-06 springfield), and impacts from AK47, SS109 / M855, M80 and similar threats. Our ESAPI plate is stand alone, and requires no soft armor behind.
Side plates offer enhanced ballistic protection by covering the sides of the torso, safeguarding vital organs like the kidneys and liver. By adding this extra layer of protection, side plates increase survivability without significantly compromising mobility or comfort. Our PGD U-line side plates NIJ level 4 are square cut, single curved and very light for comfort.
Our PGD U-line side panels come in the following sizes:
All our hard armor plates are sold as single pieces – not pairs.
| Ballistics | Tested for NIJ level IV |
| Threats | The side plates stop the following threats: – NIJ 0101.06 IV: 30 cal. 166 gr. APM2, 1 shot – Special threat: 7.62x54R 150 gr. B32, 1 shot – Special threat: 7.62×51 NATO M80, 1 shot – Special threat: 7.62×39 MSC AK47, 1 shot – Special threat: 5.56×45 NATO SS109/M855, 1 shot |
| Type | Square cut | Standalone | Requires no soft armor |
| Ergonomic fit | Single curve |
| Material | Monolithic Silicon Ceramic from Saint Gobain and aramid backing |
| Waterproof cover | Cordura cover |
| Warranty | 7-year ballistic warranty |
| Thickness | 26 mm / 1″ thin (SA) |
| Sizes | – 6″ x 6″ (15 x 15 cm) 1.0 kg / 2.2 lbs
– 6″ x 8″ (15 x 20 cm) 1.35 kg / 2.98 lbs |
